LOC

The localizer capture function requires the ILS receivers to be set to an ILS frequency. This is done fully automatic with the auto tuning but it requires a flight plan with to be programmed.

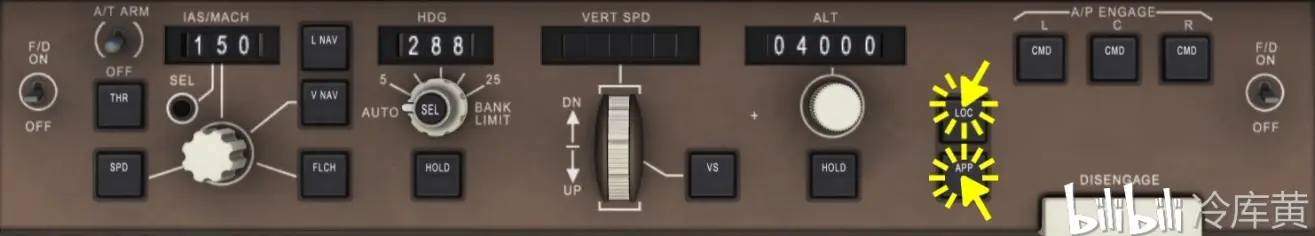

Click the LOC push button to arm the localizer only or

Click the APP push button to arm the localizer and glide slope for the ILS approach

Note - The armed status of the LOC can be seen on the FMA in the second line in white. Also the LOC or APP buttons illuminate.

To disarm the localizer capture

Click the LOC or APP button a second time, given they haven't engaged yet. If they have you need to select another mode. If G/S was already captured V/S will engage (see below).

Note - You can switch between LOC only and APP as long as they as the glide slope (G/S) is not captured yet.

定位器捕獲功能要求將ILS接收器設置到一個ILS頻率。這個過程完全通過自動調整全自動完成，但是需要對飛行計劃進行編程設置。

LOC模式

單擊LOC按鈕以單獨武裝Localizer或

單擊APP按鈕來武裝定位器Localizer和下滑道Glide Slope用于ILS進場

注意 -LOC的武裝狀態可以在FMA的第二行中以白色顯示。LOC或APP按鈕也會亮起。

取消 定位器捕獲 localizer capture function

如果兩個模式尚未啟用，請再次單擊LOC或APP按鈕。如果他們有，則需要選擇其他模式。如果已經捕獲了G/S，則V/S將參與(見下文)。

注意 -只要尚未捕獲下滑道(G/S)，就可以在僅LOC和APP之間切換。

Rollout

當同時捕獲LOC和G / S時，ROLLOUT自動武裝低于1500ft RA。這種橫向模式將使用舵Rudder將ILS定位器保持在地面上。這是該飛機全自動著陸能力的一部分。
